Shiny and fingerprint-free finish
All stainless steel surfaces are coated with a special TouchFree film that prevents fingerprint markings, leaving the surface always shiny and making cleaning much easier.
Energy class
B
Venting tube diameter
15 cm
Colour of housing/chimney
stainless steel / stainless steel
Lightning efficiency class
A
Material of housing/chimney
stainless steel / stainless steel
Fluid dynamic efficiency class
B
Grease filtering efficiency class
A
Air flow by extraction version, step 1
238 m³/h
Air flow by extraction version, step 2
380 m³/h
Air flow by extraction version, step 3
520 m³/h
Maximum extraction rate by extraction operation
520 m³/h
Maximum extraction rate by recirculation operation
390 m³/h
Lamp type
LED

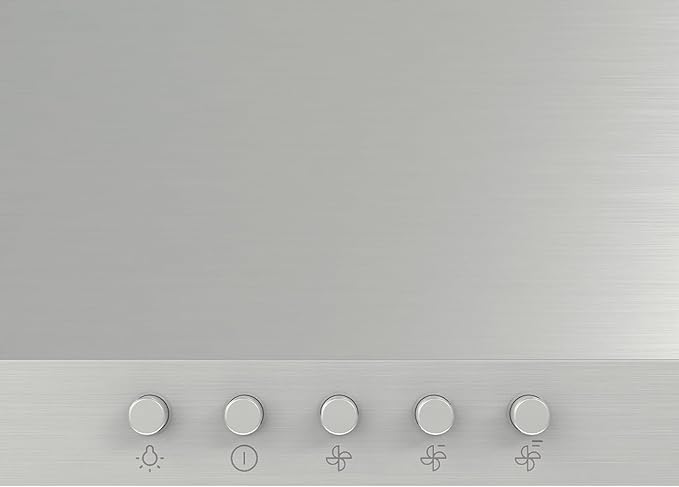

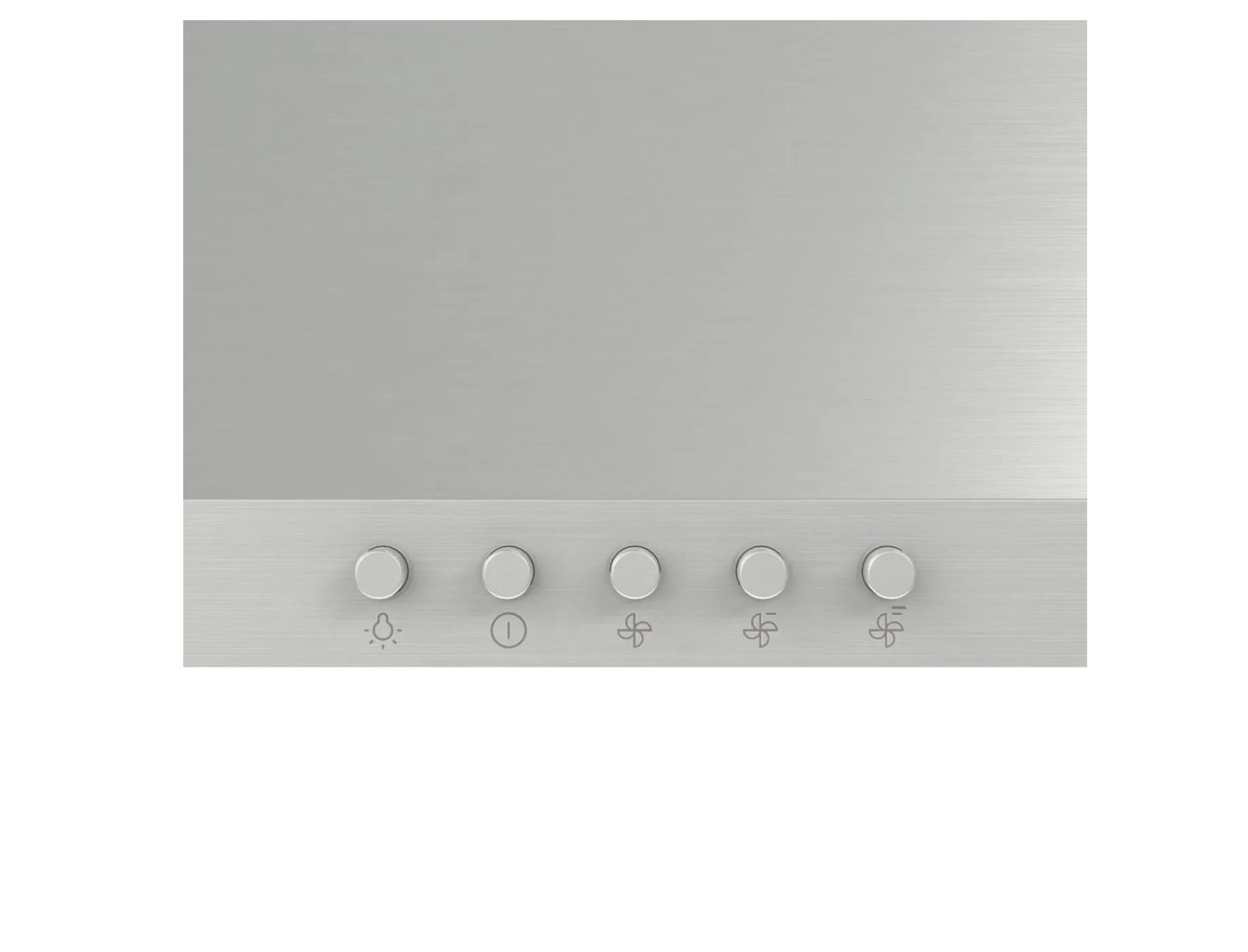

Control setting
Button control
Power of lights
6 W
Number of lights
2
Number of speed positions
3
Height
250 mm
EAN code
3838942136962
Motor type
Capacitor motor
Net weight
11.5 kg
Gross weight
16.4 kg
Product code
565736
Connected load
141 W

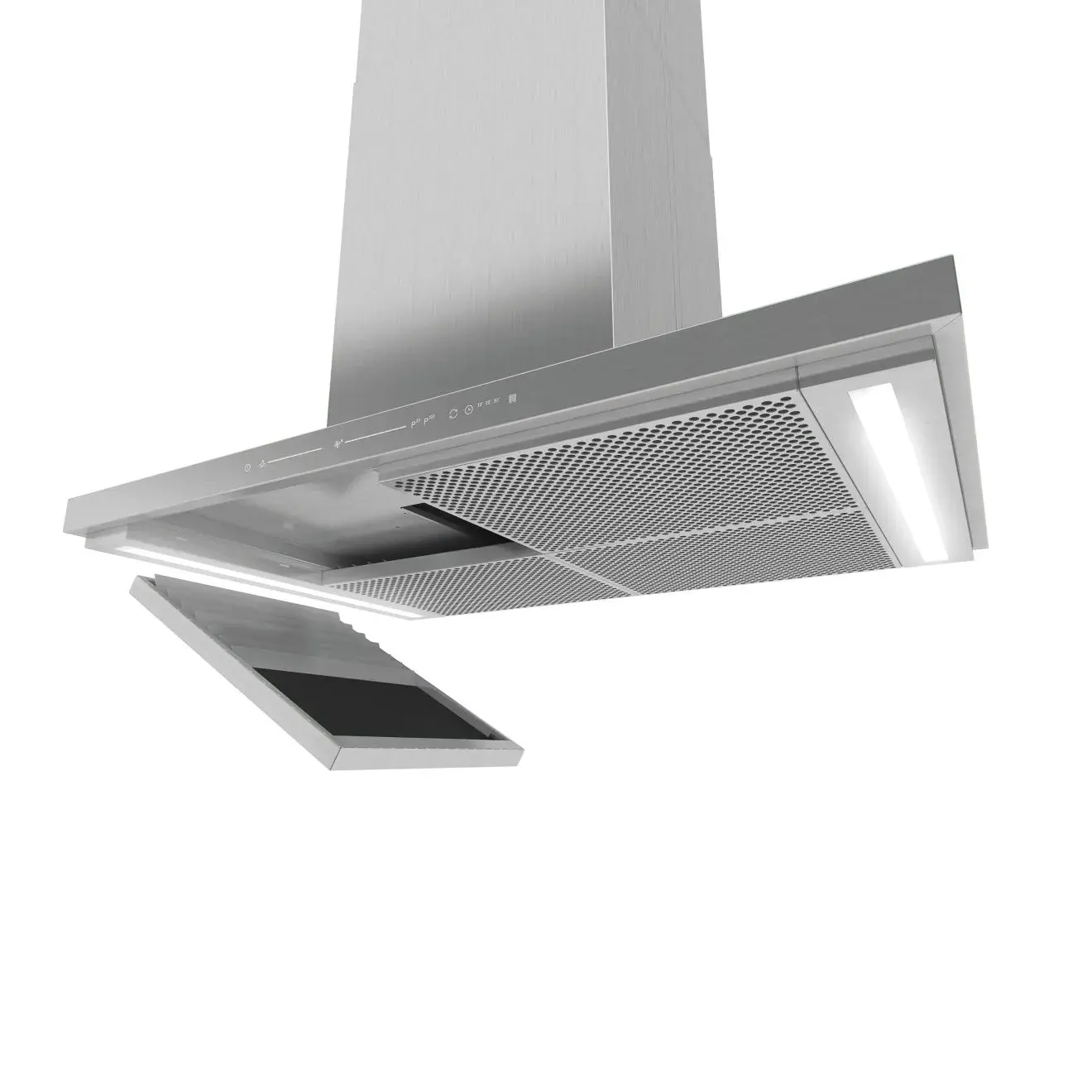

Filter material
Washable aluminium with polyurethane foam
Max. noise level
63 dB(A)re 1 pW
Number of motors
1
Number of filters
3
Dimensions (W×H×D)
90 × 25 × 50 cm
No return airflow flap
150 mm
Nominal current of fuse
10 amp
Annual energy consumption
60.4 kWh
Max. height of the chimney
875 mm
Min. height of the chimney
545 mm
Dimensions of packed product (W×H×D)
101.5 × 43.5 × 56 cm
Coal filter code (optional as separate purchase)
315275
